The Critical Role of ATM Thermal Printers
In modern banking and self-service financial ecosystems, the ATM Thermal Printer serves as the final physical touchpoint between the financial institution and the customer. Providing instant transaction receipts, account balance inquiries, and statement printouts, this compact hardware module is vital for maintaining user trust and meeting regulatory compliance requirements.
Unlike traditional impact printers, thermal printers rely on localized heat transfer to produce high-resolution text and graphics on specialized thermal paper. While this design eliminates the need for ink or toner—greatly reducing physical maintenance steps—it introduces unique thermal, mechanical, and optical challenges. When an ATM printer fails, it can disrupt transactions, trigger terminal error alarms, and increase operational overhead. This guide details wear-and-tear parts, diagnoses common faults, and provides actionable troubleshooting procedures.

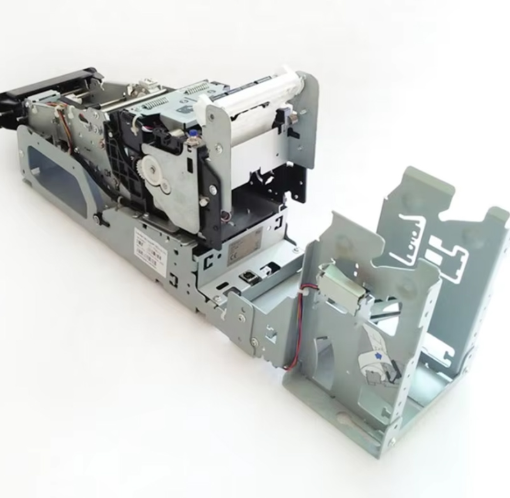

Figure 1: Standard ATM Thermal Receipt Printer Module
Versatile Kiosk & ATM Thermal Printer Applications
ATM thermal printers are not limited to banking terminals. Their high speed, reliability, and compact design make them a staple across various self-service industries:
Banking ATMs & Smart Kiosks
Used for printing cash withdrawal receipts, balance inquiries, deposit confirmations, and mini-statements directly to users at bank lobbies and drive-thrus.
Ticketing & Transit Kiosks
Deployed in subway stations, airports, and entertainment venues to print boarding passes, cinema tickets, and transport vouchers rapidly.
Healthcare & Queue Management
Integrated into hospital self-check-in kiosks and government service centers to print queue numbers, appointment details, and prescription sheets.
Anatomy of ATM Printers: Common Wearable Components
Understanding the mechanical and electrical components of a thermal printer is essential for diagnosing failures. Below are the parts most susceptible to degradation over time:
Thermal Print Head
Contains micro-heating elements that transfer text to paper. Vulnerable to burnout, scratches, and adhesive buildup.
Cutter Head Assembly
Utilizes static and moving blades to slice receipt paper. Dull blades or motor misalignment cause incomplete cuts and jams.
Platen & Feed Rollers
Rubberized rollers that pull the paper forward. Wear, flat spots, or paper dust buildup cause slippage and skewing.
Gears & Belts
Transmission mechanisms that link the stepper motor to the rollers. Stripped gear teeth or loose belts cause feed failures.
Comprehensive Fault Diagnosis & Actionable Solutions
No Print Output / Blank Receipt
- Thermal paper loaded incorrectly: The paper is loaded wrong-side in, or standard non-thermal paper is being used.
- Abnormal print head power supply: Power connectors are loose, or the print head has experienced electrical burnout.
- Hardware initialization failure: Communication errors exist between the terminal mainboard and the printer module.
- Paper roll empty: The physical paper roll has run out completely.
- Reload thermal paper: Confirm the heat-sensitive side faces the print head; use genuine ATM thermal receipt paper.
- Verify power connection: Check the power connector and wiring harness; measure print-head resistance, and replace the print head if it is burnt out.
- Reboot ATM terminal: Check the communication cable connection. Re-install the printer driver or update firmware if needed.
- Fit new paper roll: Replace the empty spindle with a fresh, certified paper roll.
Faded / Partial Incomplete Printing
- Surface contamination: The print head surface is dirty with dust, paper powder, or adhesive residue.
- Insufficient contact pressure: The print-head pressure spring is loose, fatigued, or misaligned.
- Low-quality thermal media: The paper roll is damp, expired, or of low quality.
- Element burnout: Partial heating elements on the print head are permanently damaged.
- Clean thermal print head: Power off the printer, clean the thermal print head with an isopropyl alcohol swab, and wait for it to dry fully.
- Adjust pressure springs: Tighten or replace the pressure springs to ensure even, firm pressure across the paper path.
- Replace thermal paper: Use qualified thermal receipt paper and store spare rolls in a dry, cool environment.
- Replace print head: If specific vertical or horizontal lines are permanently missing, replace the thermal print head.
Paper Jam / Receipt Cannot Cut / Paper Crumpling
- Obstruction in paper path: Paper scraps, dust, or foreign debris are present; the paper roll is skewed or deformed.
- Cutter module stuck: The cutter blade is blocked by paper scraps, or the cutter motor has failed.
- Worn feed roller: The rubber feed roller is worn or slipping, preventing smooth paper advancement.
- Incorrect paper width: The paper size does not match the printer's specifications.
- Clear paper path: Power off the unit, open the cover, clear paper scraps, and reinstall the paper roll in alignment.
- Resolve cutter jam: Manually release the cutter jam, clean blade residue, and test cutter action. Replace the cutter assembly if the motor or blade is damaged.
- Clean/Replace rollers: Clean the rubber feed rollers with a lint-free cloth or replace them if worn.
- Check paper specifications: Confirm the paper roll dimensions match the printer's requirements.
Receipt Not Cut Off Completely / Paper Tear
- Dull cutter blade: The cutter blade edge is worn, nicked, or dull.
- Excessive paper thickness: The thermal paper thickness exceeds the printer's rated specification.
- Cutter alignment offset: The cutter is misaligned, causing an incomplete cutting stroke.
- Replace cutter assembly: Replace the cutter blade or the entire cutter module.
- Use standard paper: Use recommended standard-thickness thermal paper.
- Calibrate cutter position: Calibrate the cutter's home position and verify the mounting screws are tight.
Printer Alarm / Error Code Reported
- Sensor contamination: The paper-end optical sensor is covered by dust, causing false paper-empty alerts.
- Lid switch mis-trigger: The cover open sensor is triggered because the printer lid is not fully latched.
- Motor overheating: The motor's thermal protection is active after repeated paper jams.
- Firmware mismatch: A firmware error or driver conflict is present.
- Clean optical sensors: Gently clean the paper-end sensor and reflective sensors with compressed air or a dry swab.
- Latch printer cover: Close the cover firmly and inspect the mechanical switch for damage.
- Power-cycle and cool down: Power-cycle the terminal to reset overheat protection, and resolve the root jam.
- Update firmware: Upgrade or restore the printer's official firmware.
Random Paper Feeding / Unexpected Blank Receipts
- Contaminated sensors: The reflective or transmissive sensors are dirty, sending false paper-detect signals.
- Driver/Software issues: The host software or driver is sending redundant or corrupted print commands.
- Signal interference: A loose or unshielded communication cable is causing signal noise.
- Clean sensors: Clean all optical sensors inside the printer compartment.
- Check system logs: Inspect the ATM application log and troubleshoot the print queue.
- Secure connections: Re-seat the communication harness and replace the cable if it is damaged.
Quick Preventive Maintenance Tips
Regular maintenance helps prevent unexpected printer failures. Implement these practices to keep your ATM printers running smoothly:
Isopropyl Alcohol Cleaning
Periodically clean the print head, cutter blades, and optical sensors with isopropyl alcohol (99% concentration recommended) to remove adhesive residue and paper dust.
Use Approved Thermal Paper
Always use manufacturer-approved thermal receipt paper. Cheap paper can release excessive dust, wear out the print head prematurely, or cause cutting issues.
Environmental Protection
Keep the internal printer compartment free of dust and humidity. Moisture can cause thermal paper to swell or stick, leading to frequent jams.
Routine Mechanical Inspections
Check roller and spring wear status during routine ATM maintenance. Replace worn rubber rollers and fatigued springs before they cause operational failures.
Real-World Case Study: Resolving High-Frequency Jams
Scenario: High-Frequency Jamming at a Busy Retail ATM Branch
Problem Statement: A high-volume ATM terminal reported frequent paper jams, with receipts crumpling before reaching the exit slot. Local field technicians replaced the paper rolls, but the issue recurred within 48 hours.
Diagnostic Process:
- Step 1: Visual Inspection: Technicians found paper fibers and adhesive residue built up on the platen roller and cutter home-position sensor.
- Step 2: Roller Analysis: Testing revealed a flat spot on the rubber feed roller, which caused uneven feeding tension.
- Step 3: Tension & Alignment: The cutter assembly was misaligned by 1.2mm due to a loose mounting screw, causing the blade to catch the paper edge.
Resolution: The technician replaced the worn platen roller, cleaned the sensor window with isopropyl alcohol, and secured the cutter housing. A test run of 50 consecutive cuts showed no errors, resolving the issue.
Key Takeaway: Addressing mechanical wear and keeping components clean is more effective than simply swapping paper rolls.
