ATM Spare Parts Glory NMD100 NMD300 CMC200 CMC400 Cash Dispenser Control Board A008545
ATM Spare Parts Glory NMD100 NMD300 CMC200 CMC400 Cash Dispenser Control Board
|
Brand Name |
Glory De La Rue / Talaris |
|
Product name |
NMD100 NMD300 CMC200 CMC400 Cash Dispenser Control Board |
|
Part No. |
A008545 |
|
Used in |
NMD100 NMD300 CASH DISPENSER |
|
Condition |
New |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
1000pcs each month |

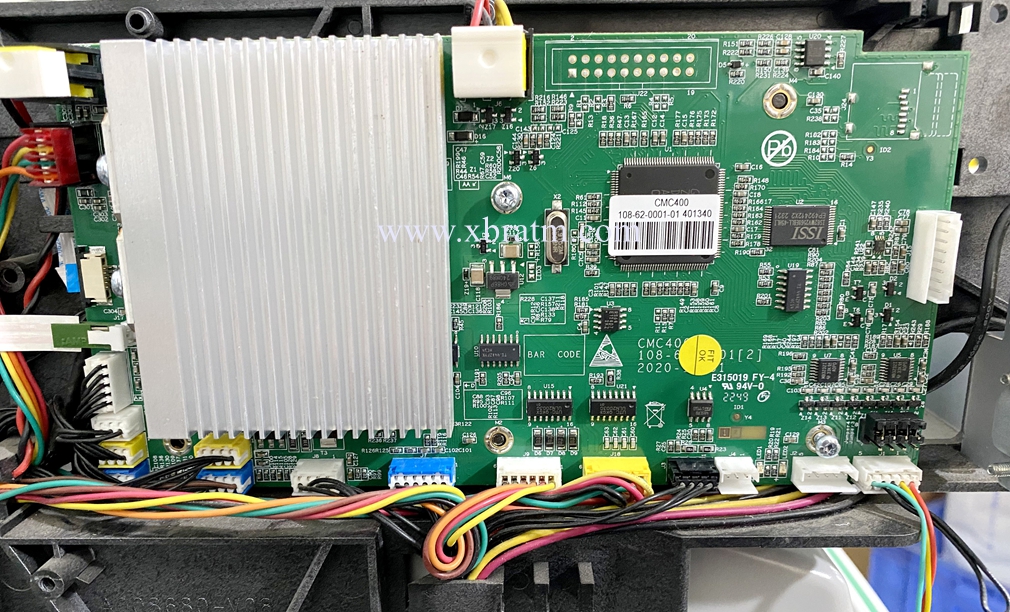

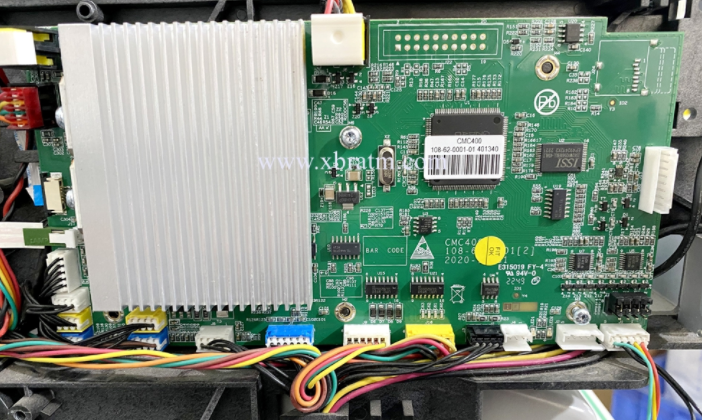

Glory CMC200 CMC400 dispenser controller board, reliable core board for NMD100 & NMD300 ATM cash dispenser maintenance repair.
Product Name: Glory CMC200 CMC400 Dispenser Control Board
Part No.: A008545
Compatible Model: Glory NMD100, NMD300 Cash Dispenser Modules
Key Features:
- Original Glory factory control motherboard exclusively for NMD series ATM cash dispensers, perfect plug-and-play replacement for damaged main control board.
- Built-in high-power aluminum heat sink for stable motor drive operation during long-time 24/7 ATM continuous working.
- Complete multi-channel power & sensor interface, directly connect cash cassettes, transport motors, banknote sensors, reject bin sensors without extra wiring modification.
- Industrial EMC circuit design, strong anti-jamming capability to adapt complex electromagnetic environment inside ATM cabinet.
- Pre-programmed official firmware, supports real-time cash counting, note jam detection, cassette status feedback and fault code upload to ATM host PC.
- Clear status LED indicators for quick on-site maintenance fault diagnosis to reduce ATM downtime.
Specifications
|
Item |
Parameter Description |
|---|---|
|
Core Function |
Main controller for cash dispenser motor drive, banknote detection, sensor signal acquisition, host communication |
|
Hardware Structure |
Multi-layer industrial PCB + aluminum alloy high-power heat sink (for drive chip heat dissipation) |
|
Power Interface |
Multi-channel DC power terminals (Yellow/Blue/White color-coded power connectors for motor, sensor, logic power supply) |
|
Signal Interfaces |
1. Multi-pin harness ports for cassette sensors, double-note detection, transport motor, reject bin sensor2. Serial communication port for ATM mainboard interaction3. LED status indicator for fault diagnosis |
|
Working Voltage |
24V DC main power supply, 5V/12V auxiliary logic power |
|
Operating Temperature |
0℃ ~ +55℃ (Industrial grade for ATM cabinet internal environment) |
|
Anti-Interference Design |
EMC reinforced circuit design, anti-surge & anti-electromagnetic interference for ATM cabinet complex wiring environment |
|
Firmware |
Pre-flashed dedicated firmware for NMD series dispenser logic control |
FAQ:
Q: What’s the condition of your product?
A: Generally original new, generic new, refurbished, tested working(used)
Q: Do your products have a warranty?
A: Yes. Each product have a warranty, normally it is 90days.
Q: Do you have your own factory?
A: Yes. We have a factory, located in Dongguan. We do the refurbishment by ourselves.
Q: Do you provide technical support?
A: Yes, we provide free technical support via email, phone, or video call.
