ATM Parts Wincor Nixdorf Power Supply CMD III 01750263469 1750263469
ATM Parts Wincor Nixdorf Power Supply CMD III 1750263469
|
Brand Name |
Wincor Nixdorf |
|
Product name |
Power supply CMD III |
|
Part No. |
1750263469 |
|
Used in |
Wincor PC280 ATM Machine |
|
Condition |
New |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
1000pcs each month |
Full Electrical Specifications
Input Parameter
- Input Voltage: AC 100–240V universal wide voltage
- Input Frequency: 50 / 60Hz
- Input Current: Max 6.0A (100V) / 3.0A (240V)
- Input Interface: Standard IEC C13 AC power socket
Output Channels & Rated Current
|
DC Output Voltage |
Rated Output Current |
Max Peak Current |
|---|---|---|
|
+5.1V |
10.0A |
12A |
|
+12V |
7.0A |
9A |
|
+24V |
15.0A |
18A |
|
-12V |
0.5A |
0.8A |
|
5V USB Auxiliary |
2.0A |
3A |
Power Rating
- Total Continuous Output Power: 374W
- Max Peak Power: 400W
- Efficiency: Up to 85% under full load
Physical & Environmental Specs
- Cooling: Built-in 80mm DC cooling fan, temperature-controlled speed regulation
- Housing: All-metal sealed industrial cabinet
- Weight: Approx 0.5kg
- Operating Temperature: 0℃ ~ +50℃
- Storage Temperature: -20℃ ~ +70℃
- Protection Functions: Over Voltage (OVP), Over Current (OCP), Short Circuit (SCP), Over Temperature (OTP) auto shut-down & recovery
Output Connectors
- 5 multi-pin white plastic harness connectors for ATM mainboard, dispenser, printer, shutter, card reader
- Dedicated USB power pin for peripheral modules

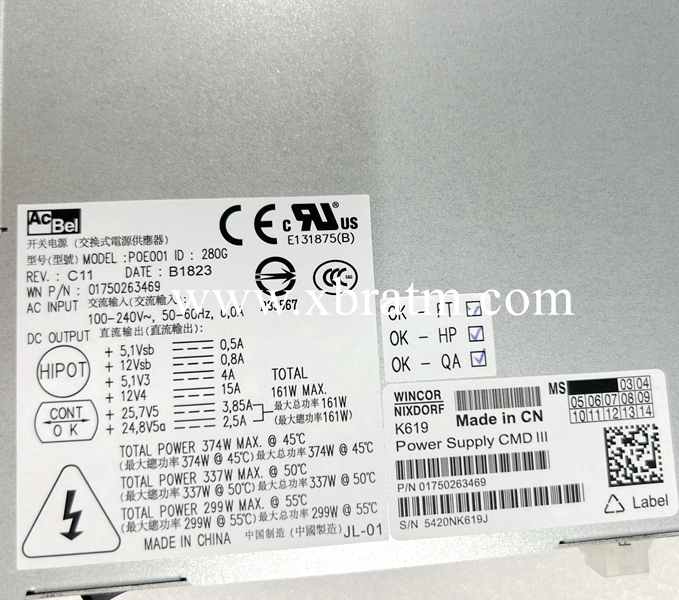

Wincor Nixdorf CMD III Power Supply P/N 01750263469, 374W multi-output switching PSU compatible with Wincor PC280, PC285, PCS280N ATM. Universal 100-240V AC input, multi DC rail outputs including high-current 24V for cash dispenser. Built-in cooling fan with full safety protection circuits, original AcBel manufacture, widely used as central power unit for Wincor ProCash self-service banking terminals, available new original and fully tested refurbished units.
FAQ:
Q: Can you provide sample for testing?
A: Yes, We can provide free samples for most of small spare parts.
Q: Do you have your own factory?
A: Yes. We have a factory, located in Dongguan. We do the refurbishment by ourselves.
Q: Do you provide technical support?
A: Yes, we provide free technical support via email, phone, or video call.
Q: Do you have a quality control team?
A: Yes, we have a professional quality control team that is responsible for testing all products.
