ATM Parts Wincor Cineo C4060 VS-Module-Recycling 1750200435
ATM Parts Wincor Cineo C4060 VS Module Recycling 1750200435
|
Brand Name |
Wincor |
|
Product name |
C4060 VS Module Recycling |
|
Part No. |
1750200435 |
|
Used in |
Wincor C4060 ATM Machine |
|
Condition |
New |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
500pcs each month |

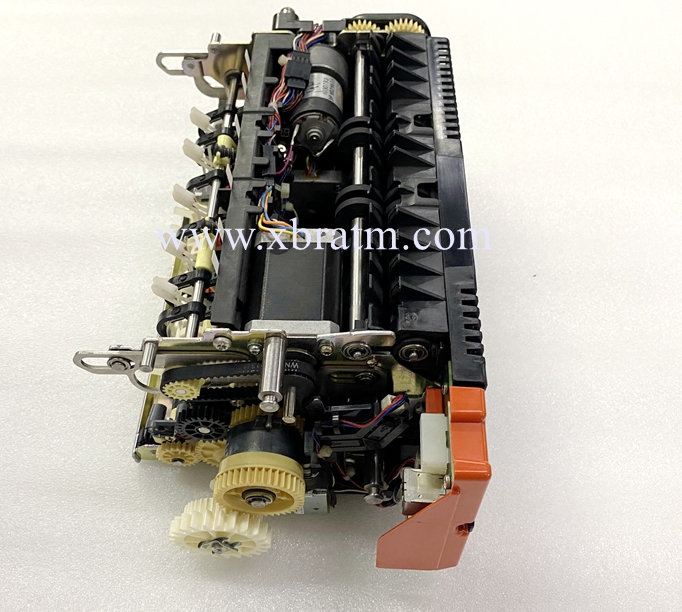

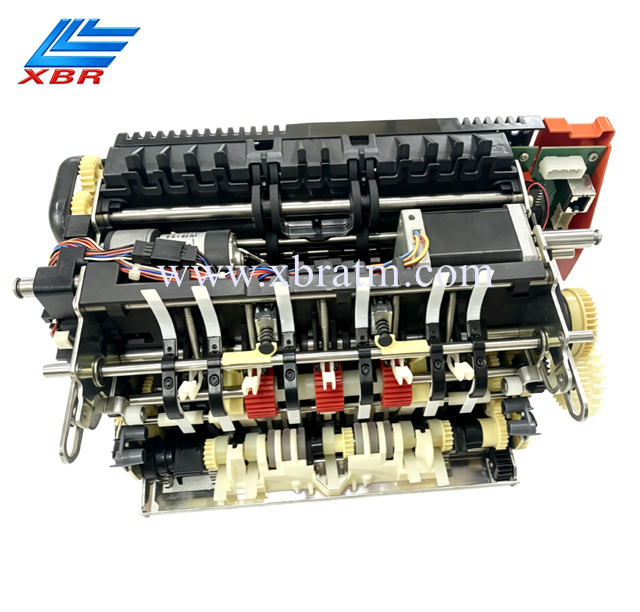

Wincor Cineo C4060 VS Recycling Module is the critical intermediate transport assembly of the Wincor Cineo C4060 RM3 cash recycling ATM system, responsible for all banknote sorting, temporary buffering, and two-way transmission between customer entry slot, recycling cassettes, reject bin and cash storage safe unit.
Main Working Purposes
Deposit Bill Separation & Conveying When customers perform cash deposit transactions, the module’s multi-group rubber separation wheels separate stacked banknotes one by one, then transport single notes to the recognition sensor unit for authenticity, denomination and serial number verification.
Recycling Bill Temporary Storage & Distribution Qualified deposited banknotes are buffered inside the VS module’s intermediate tracks, then automatically distributed into corresponding denomination recycling cassettes for reuse in future withdrawal transactions, realizing cash recycling circulation and reducing frequent cash replenishment frequency for banks.
Withdrawal Bill Feeding & Sequencing For customer withdrawal requests, the module receives banknotes fed out from recycling cassettes, arranges single notes in uniform order, and conveys them smoothly to the customer output shutter without jamming or double-feeding.
Unqualified Banknote Reject Diversion Counterfeit, torn, overlapping or unrecognizable banknotes detected during deposit will be diverted by the module’s plastic deflector paddles to the dedicated reject compartment, avoiding mixing valid and invalid cash.

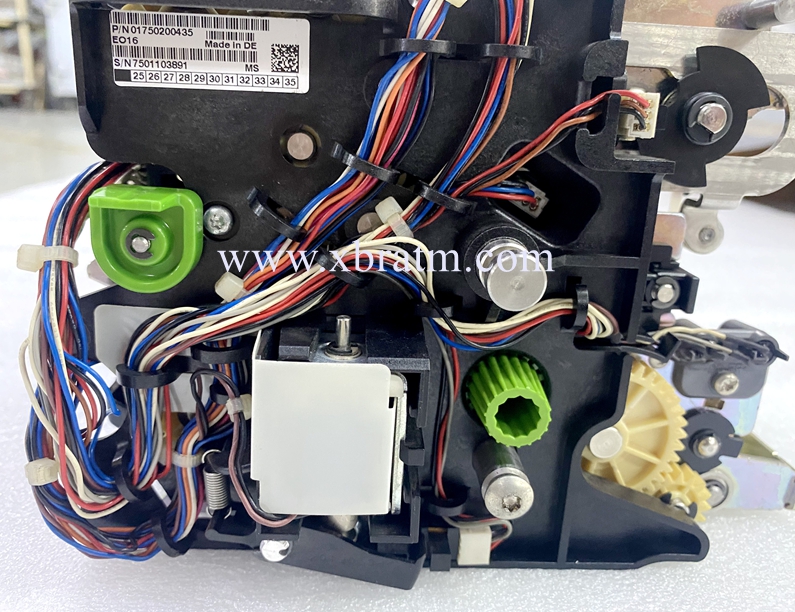

Mechanical & Signal Synchronization Control The onboard PCB communicates real-time mechanical status (jam, missing roller, motor error) to the ATM main control board; all drive gears and sensor assemblies coordinate synchronous bill transport to lower jam failure rates in high-traffic bank ATMs.
FAQ:
Q: Can you provide sample for testing?
A: Yes, We can provide free samples for most of small spare parts.
Q: Do you have your own factory?
A: Yes. We have a factory, located in Dongguan. We do the refurbishment by ourselves.
Q: Do you provide technical support?
A: Yes, we provide free technical support via email, phone, or video call.
Q: Do you have a quality control team?
A: Yes, we have a professional quality control team that is responsible for testing all products.
