ATM Parts GRG H68VL CRM9250N-NE-001 Note Escrow YT4.029.0888 502015232
ATM Parts GRG H68VL CRM9250N-NE-001 Note Escrow YT4.029.0888 502015232
|
Brand Name |
GRG |
|
Product name |
CRM9250N-NE-001 NOTE ESCROW |
|
Part No. |
YT4.029.0888 502015232 |
|
Used in |
GRG H68VL ATM Machine |
|
Condition |
NEW OR REFURBISHED |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
100pcs each month |

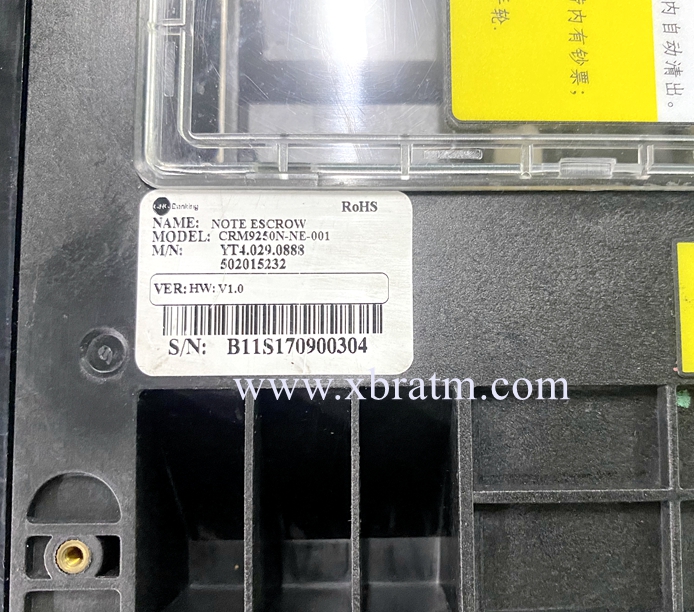

GRG CRM9250N-NE-001 Note Escrow Module (YT4.029.0888, 502015232) is the original temporary bill holding spare part exclusively for GRG H68VL/H68N series CRM9250N cash recycling ATMs. As a core sub-assembly of deposit processing channel, it safely stores customer banknotes during validation and confirmation procedures, realizing automatic return of banknotes for cancelled or abnormal deposit transactions. Adopting NE split modular structure, it supports independent disassembly for jam clearance to reduce equipment downtime, with stable 36VDC driving system and max 200-pcs bill storage capacity. Fully tested original / refurbished units available, widely used in bank self-service cash recycling kiosks worldwide.
Technical Specifications
|
Item |
Parameter |
|---|---|
|
Max Escrow Capacity |
200 standard banknotes |
|
Working Voltage |
DC 36V (match CRM9250N power system) |
|
Supported Banknote Size |
Width:62–85mm; Length:120–172mm |
|
Processing Speed |
Matches CRM host: 8 notes/sec transport speed |
|
Working Humidity |
15%–85% RH (non-condensing) |
|
Storage Humidity |
5%–95% RH |
|
Ambient Temp |
Operating: 0℃~45℃; Storage: -20℃~60℃ |
|
Structure Design |
Split independent modular design (NE version) |
|
Interface |
Multi-wire harness connector, direct plug-and-play to CRM main control board |
|
Material |
Reinforced engineering plastic + metal drive rollers & gears |
|
Compatible Cassette Config |
CRM9250N full configurations: 2+1.5 / 3+1.5 /4+1.5 cassette layout |
