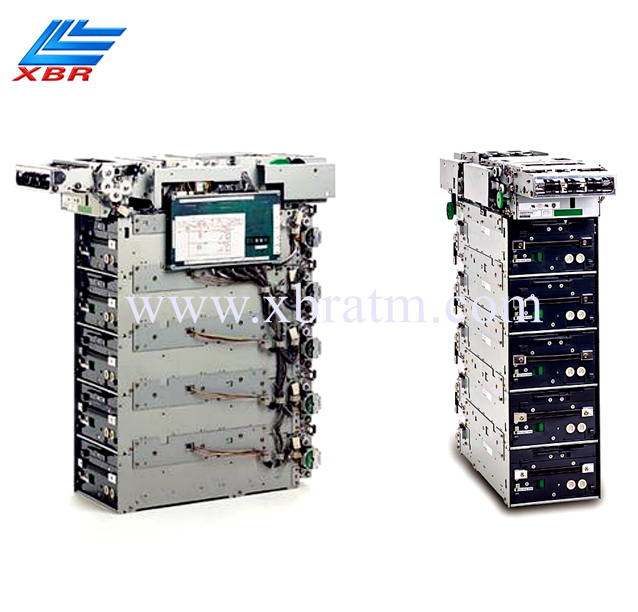

ATM Parts Fujitsu F510 Bill Dispensing Cash Dispenser With Cassettes

ATM Parts Fujitsu F510 Bill Dispensing Cash Dispenser With Cassettes

Technical Specifications

Basic Information

• Model: F510 Bill Dispensing Unit (BDU)
• Manufacturer: Fujitsu
• Application: ATM cash dispensing, self-service cash handling equipment

Cassette & Capacity

• Max. Cassette Quantity: Up to 5 cassettes (standard configuration)
• Capacity per Cassette: Approx. 3,000 new banknotes
• Total Maximum Capacity: 15,000 notes (5-cassette setup)
• Reject Bin: Integrated within the first cassette
• Reject Bin Capacity: Approx. 150 banknotes
• Low Bill Sensor: Adjustable (factory default: 100 notes)

Dispensing Performance

• Dispensing Speed: 7 notes per second (subject to note condition & size)
• Max. Notes per Single Transaction: 60 bills
• Bill Retrieval Function: Supported (bunch presenter, unclaimed notes retraction)
• Shutter: Optional installation

Acceptable Banknote

• Max. Size: 82 mm × 172 mm
• Min. Size: 60 mm × 120 mm
• Banknote Thickness: 0.07 mm ~ 0.18 mm
• Other Media: Up to 0.3 mm thickness (certification required)

Physical Dimensions & Weight (5-cassette version)

• Front Access Dimension (W × D × H): 280 mm × 752 mm × 810 mm
• Rear Access Dimension (W × D × H): 280 mm × 757 mm × 810 mm
• Net Weight (without banknotes): Approx. 72 kg
• Service Mode: Front service / Rear service / Dual access configurable

Electrical Requirements

• Input Power: DC +24V (±10%)
• Average Current: 4 A
• Peak Current: Max. 10 A
• Communication Interface: RS232C

Environmental Conditions

• Operating Temperature: 0 °C ~ 40 °C
• Storage Temperature: -5 °C ~ 50 °C
• Operating Humidity: 10% ~ 85% RH (non-condensing)
• Storage Humidity: 8% ~ 95% RH (non-condensing)

Main Features

1. High-speed multi-cassette cash dispensing unit for ATM and self-service terminals
2. Flexible service access design (front / rear maintenance) to match different ATM cabinet layouts
3. Reliable banknote separation & detection, supports multiple global currencies
4. Built-in reject compartment for unrecognized, damaged or unclaimed banknotes
5. Adjustable low-banknote warning sensor for stock monitoring
6. Integrated diagnostic function for simplified maintenance & fault troubleshooting

FAQ:

Q: What’s the condition of your product?

A: Generally original new, generic new, refurbished, tested working(used)

Q: What is the minimum order quantity (MOQ)?

A: Our MOQ is 1 piece for most standard spare parts.

Q: Do you offer bulk discounts?

A: Yes, we offer competitive bulk discounts for orders with large quantities.

Q: How do I get a quotation?

A: You can send us an email with the part number and quantity, and we will send the quotation within 24 hours.
