ATM Spare Parts SANKYO Card Reader ICT3K9-3R6940 Electric Smart Card Reader
ATM Spare Parts SANKYO Card Reader ICT3K9-3R6940
|
Brand Name |
Sankyo |
|
Product name |
Sankyo 3k9 card reader |
|
Part No. |
ICT3K9-3R6940 |
|
Used in |
Atm machine, Kiosk |
|
Condition |
New |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
1000pcs each month |

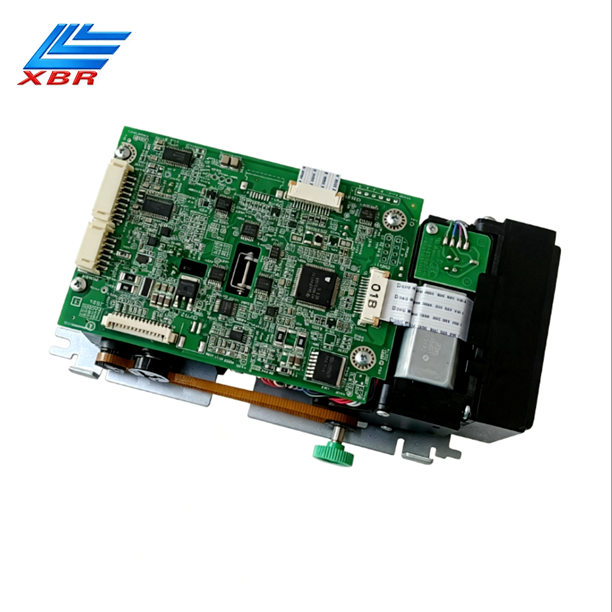

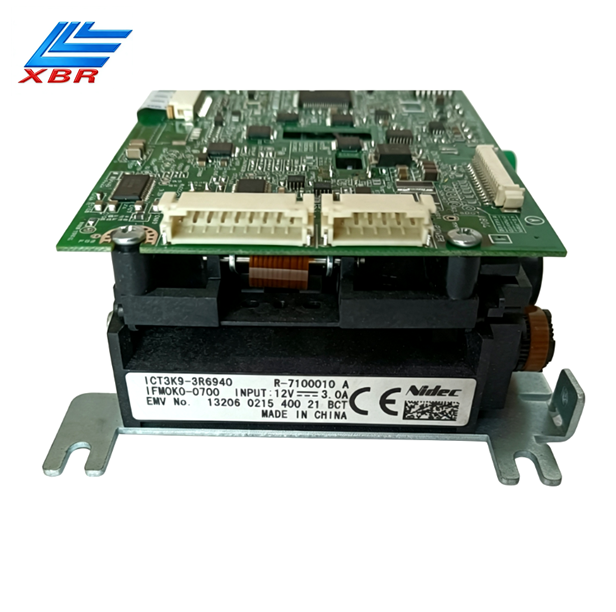

ICT3K9-3R6940 is a high-reliability motorized card reader developed by Nidec Sankyo, designed as the standard card access module for unattended self-service equipment.
- Mainly integrated into ATM, CRS Cash Recycling System, VTM, bank smart teller kiosks.
- Supports automatic card insertion transport, magnetic stripe reading & contact IC chip communication.
- Built-in anti-vandal shutter, supports card capture function for expired / abnormal bank cards.
- Compliant with EMV Level 1 certification, meets global financial security standards.
- Widely adopted for financial self-service terminals, medical kiosks, transportation ticketing machines and gaming terminals.
Key Technical Specifications
Electrical Parameter
- Input Voltage: DC 12V ±10%
- Rated Current: 3.0A
- Communication Interface: RS232 Serial Port
Card Support
- Magnetic Stripe: Read-only, 3-track magnetic card
- IC Card: Contact smart IC card (ISO7816 standard)
- Support encrypted memory cards
Mechanical & Durability
- Service Life: ≥600,000 card passes
- Motor-driven card transport
- Integrated anti-vandal shutter mechanism
- Support automatic card capture
Environmental Condition
- Operating Temperature: +5℃ ~ +50℃, 30%~80%RH (non-condensing)
- Storage Temperature: -20℃ ~ +70℃, 30%~80%RH (non-condensing)
Physical Dimension
- Size (W × D × H): 97 mm × 167 mm × 43 mm
- Net Weight: Approx. 0.5 kg
Certification
- EMV Level 1 Certified
- RoHS Compliant
- CE Certified
3. Core Advantages (For Product Listing)
- Original Nidec Sankyo motorized card reader, widely recognized ATM spare part
- EMV Level 1 certified, secure transaction for global banking applications
- Robust mechanical structure, stable performance under high-frequency continuous operation
- Built-in anti-vandal shutter and automatic card capture function
- Standard RS232 interface, easy integration and replacement for most self-service machines
- Compact size, convenient installation and maintenance
FAQ:
Q: What’s the condition of your product?
A: Generally original new, generic new, refurbished, tested working(used)
Q: Do your products have a warranty?
A: Yes. Each product have a warranty, normally it is 90days.
Q: Do you have your own factory?
A: Yes. We have a factory, located in Dongguan. We do the refurbishment by ourselves.
Q: Can I customize ATM parts according to my needs?
A: Yes, we offer customization services for certain parts (please contact us for details).
