ATM Spare Parts S&G 6124 6125 Keypad Deadbolt Electronic Safe Lock
ATM Spare Parts S&G 6124 6125 Keypad Deadbolt Electronic Safe Lock
|
Brand Name |
S&G |
|
Product name |
S&G 6124 6125 Keypad Deadbolt Electronic Safe Lock |
|
Part No. |
6124 6125 |
|
Used in |
atm machine |
|
Condition |
Refurbished new |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
100-200pcs each month |

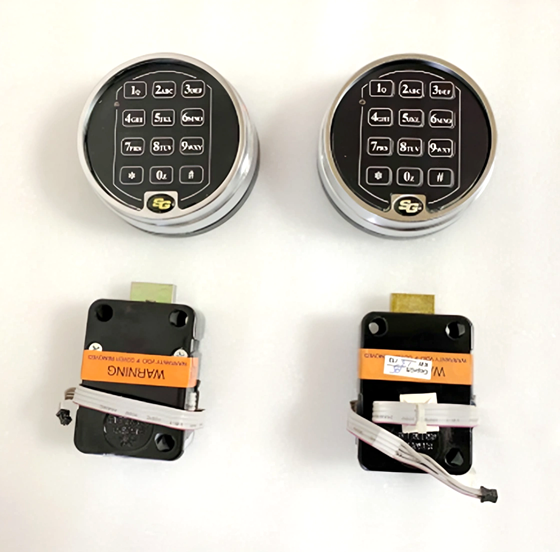

S&G 6124 / 6125 Keypad Deadbolt Electronic Safe Lock
The S&G 6124/6125 are high-security motorized electronic safe locks by Sargent & Greenleaf, designed for commercial, banking, and institutional safes. They differ primarily in bolt drive type: 6124 = bolt blocking (indirect); 6125 = direct boltwork drive (push/pull).
Specifications
Lock Unit (6124 / 6125)
- Dimensions (W×H×L): 2.4” (61mm) × 1.1” (30mm) × 3.32” (84.3mm) Sargent and Greenleaf
- Weight: 1 lb (0.45kg) each; Housing/base: 0.7 lb (0.28kg)Sargent and Greenleaf
- Finish: Black painted case/coverSargent and Greenleaf
Keypad (61KP)
- Dimensions: 4” (101.6mm) diameter × 1.44” (36.5mm) heightSargent and Greenleaf
- Finish: Satin chrome platedSargent and Greenleaf
Electrical & Environmental
- Power: 2 × 9V alkaline batteries (Duracell recommended)Sargent and Greenleaf
- Battery Life: ~5,000 openings (reduced with time delay use)Sargent and Greenleaf
- Low Battery Alert: 5 double beeps + LED flashesSargent and Greenleaf
- Operating Temp: 32°F to 120°F (0°C to 50°C)Sargent and Greenleaf
6124 vs 6125 Differences
- 6124: Bolt-blocking design (indirect); for safes where lock bolt blocks existing boltwork.
- 6125: Direct push/pull bolt drive; 2.24 lbf (10N) nominal / 5.6 lbf (25N) max load; attaches directly to safe boltwork.
FAQ:
Q: Can I customize ATM parts according to my needs?
A: Yes, we offer customization services for certain parts (please contact us for details).
Q: Do you offer a warranty for your products?
A: Yes, we offer a 90dayS warranty for most parts.
Q: Do you have a quality control team?
A: Yes, we have a professional quality control team that is responsible for testing all products.
Q: Do you offer discounts?
A: Yes, bulk orders get better prices.
