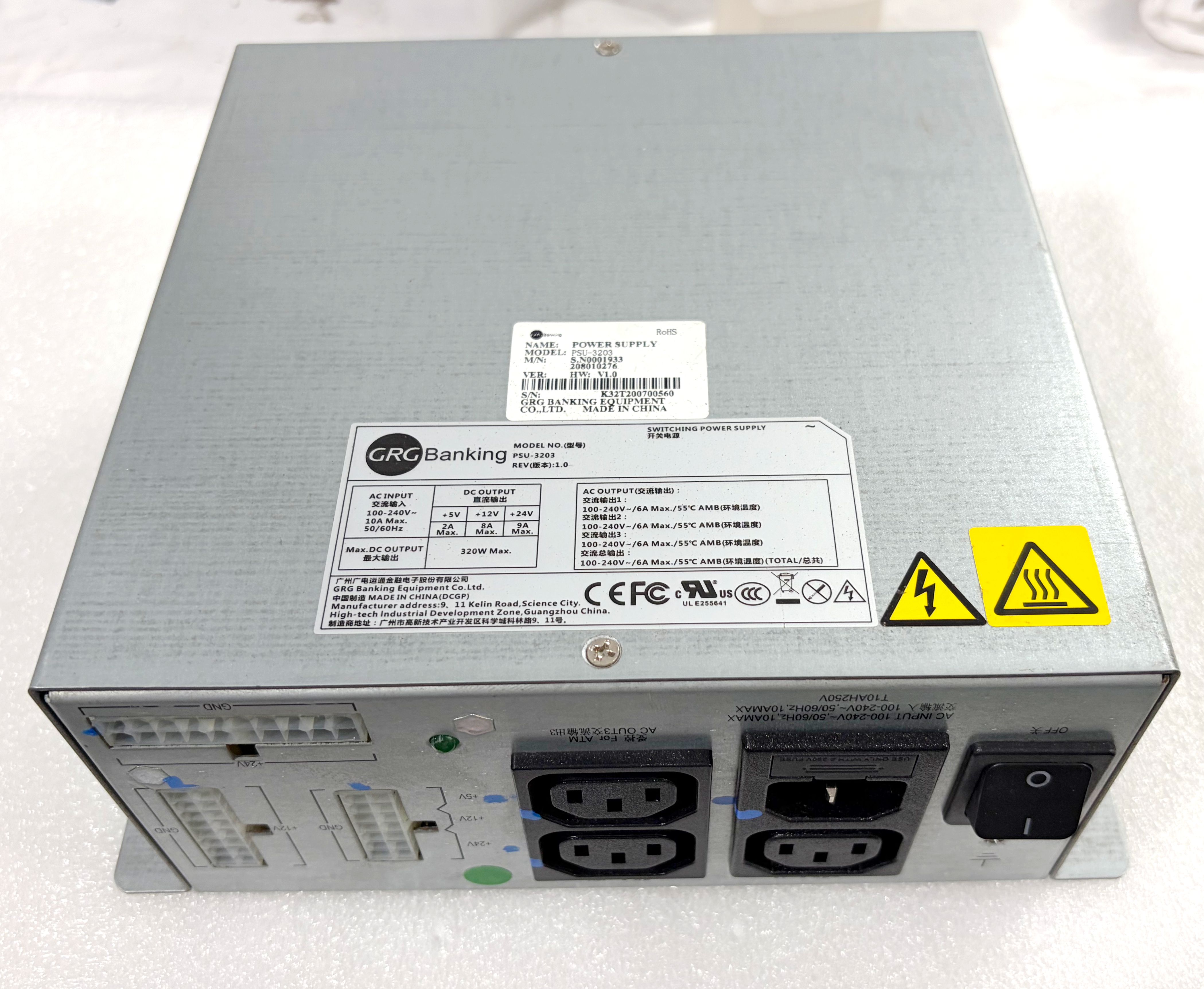

ATM Parts GRG PSU-3203 Power Supply S.N0001933 208010276
ATM Parts GRG PSU-3203 Power Supply S.N0001933 208010276
|
Brand Name |
GRG |
|
Product name |
Power Supply PSU-3203 |
|
Part No. |
S.N0001933 208010276 |
|
Used in |
GRG ATM Machine |
|
Condition |
New/Refurbished |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
1000pcs each month |
GRG PSU-3203 is an original dedicated regulated DC power supply designed for GRG Banking ATM, cash recycler and self-service banking terminal equipment, part number 208010276 is the official spare part code for GRG DT series & CL series ATM main control power unit, serial number S.N0001933 is unique factory production serial number for traceability.
Basic Electrical Parameters
- AC Input
- Input Range: AC 100–240V, 50/60Hz Wide Voltage
- Input Power: Max 190W
2.DC Output
- Rated Output Voltage: 0 ~ 32V DC Adjustable
- Rated Output Current: 0 ~ 3A DC Adjustable
- Max Output Power: 96W
- OVP Overvoltage Protection Range: 0 ~ 33V DC
3.Precision & Stability
- Voltage Resolution: 10mV
- Current Resolution: 1mA
- Voltage Load Regulation: ≤3mV
- Current Load Regulation: ≤3mA
- Line Regulation (Mains Variation): Voltage ≤3mV, Current ≤3mA
- Ripple & Noise (20Hz–20MHz): Voltage ≤1mV rms / 3mV p-p; Current ≤3mA rms
- Setting Accuracy (25±5℃): Voltage ≤0.05%+20mV; Current ≤0.1%+5mA
4.Complete Protection Circuit
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- OTP (Over Temperature Protection)
- Short Circuit Auto-recovery Protection
- Built-in buzzer alarm for fault trigger
5.Mechanical & Environment
- Dimension: 110(W) × 140(H) × 320(D) mm
- Net Weight: 4.8kg
- Cooling: Intelligent temperature-controlled variable speed fan, low noise
- Operation Temp: 0℃ ~ 40℃; Storage Temp: -10℃ ~ 70℃
- Humidity: ≤85% RH non-condensing
6.Communication Interface
- Standard: RS232 serial port
- Optional: GPIB (IEEE 488.2)
- Support SCPI command set for automated test equipment (ATE)
FAQ:
Q: Can you provide sample for testing?
A: Yes, We can provide free samples for most of small spare parts.
Q: Do you have your own factory?
A: Yes. We have a factory, located in Dongguan. We do the refurbishment by ourselves.
Q: Do you provide technical support?
A: Yes, we provide free technical support via email, phone, or video call.
Q: Do you have a quality control team?
A: Yes, we have a professional quality control team that is responsible for testing all products.
