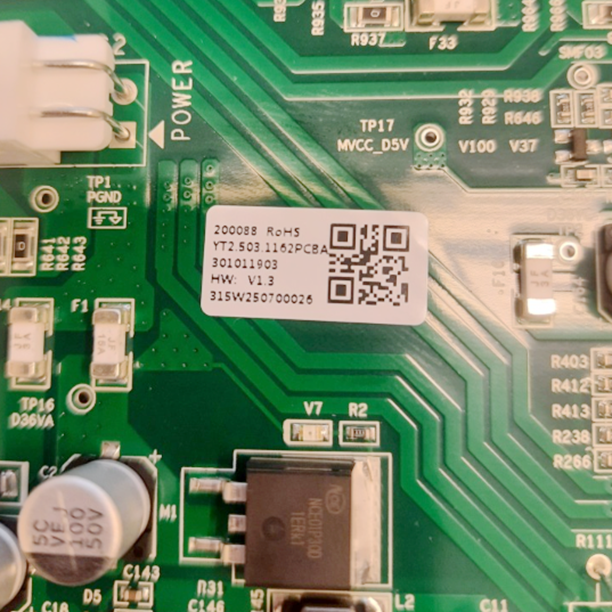

ATM Machine Parts GRG H68VL CRM9250N Upper Control Board YT2.503.1162 PCBA 301011903
ATM Parts GRG H68VL CRM9250N Upper Control Board YT2.503.1162
|
Brand Name |
GRG |
|
Product name |
CRM9250N Upper Control Board |
|
Part No. |
YT2.503.1162/301011903 |
|
Used in |
GRG H68V H68VL ATM MACHINE |
|
Condition |
New |
|
Sample Order |
Acceptable |
|
Payment |
T/T,WU,Paypal |
|
Package |
In carton box or package as clients' request |
|
Shipping |
DHL,UPS,FeDex,AIR,SEA |
|
Stock |
In stock |
|
Origin |
China,Guangdong |
|
Supply Ability |
100pcs each month |

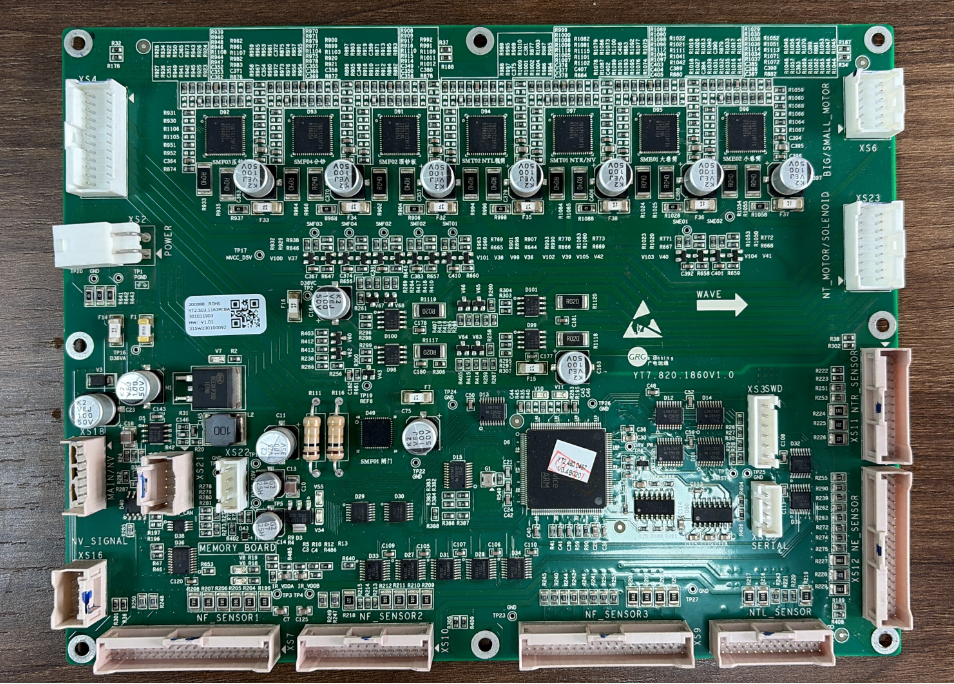

This is the upper main control board for GRG CRM9250N cash‑recycling module, used on GRG H68VL series ATM machines.
- Controls banknote transport channels, multiple NF/NTR paper‑passing sensors, solenoid valves and drive motors (big/small motor) inside the CRM9250N recycler.
- Collects real‑time sensor signals of banknote passage, performs logic judgment, drives mechanical actuators, and communicates with the host mainboard.
- Responsible for banknote receiving, recycling, dispensing, note tracking & channel fault detection of the cash recycling module.
- Core replacement spare part for ATM cash‑handling unit failure repair.
Technical Specifications
|
Item |
Parameter |
|---|---|
|
Part Number |
YT2.503.1162; Hardware revision: YT7.820.1860V1‑0 |
|
Applicable Device |
GRG H68VL ATM, CRM9250N Banknote Recycler Module |
|
Power Input |
24 VDC from CRM module power supply |
|
Main Controller |
ARM embedded microcontroller |
|
Peripheral Interface |
Multi‑channel NF / NTR sensor interfaces, solenoid drive ports, big/small motor drive connectors, serial communication port, mainboard inter‑connection port, memory board socket |
|
Function Support |
Banknote sensor sampling, solenoid & stepper motor driving, real‑time channel status feedback, fault code reporting, recycler internal logic control |
|
Working Environment |
ATM indoor environment: 0℃ ~ +50℃, 20%‑80% RH non‑condensing |
|
Condition |
Original GRG PCBA board, 100% function tested before delivery |
